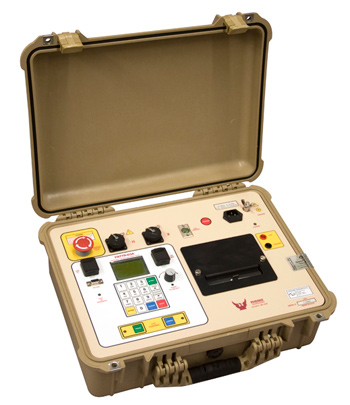

Phenix Technologies Model PATTR-03A Automatic 3-Phase Turns Ratio Transformer Test System
Part: PHENIXPATTR03A
Manufacturer: Phenix Technologies
Manufacturer #: PATTR-03A
Phenix Technologies Transformer Loss Evaluation Systems are designed to provide voltages and currents to test single-phase distribution transformers. Transformers which can be tested will vary with impedance. Units equipped with optional high voltage taps will allow you to test transformers with higher impedances and/or higher secondary voltages. Tests are made to ensure that the transformer meets purchase specifications and will perform adequately after installation.
The following standard tests can be performed, per ANSI C57 standards, latest version:
-Excitation Current Measurement
-Excitation Loss (No-Load or Core Loss)
-Impedance Voltage Measurement
-Copper Loss (Load Loss)
-Temperature
- portable, lightweight
- battery powered and line powered
- built-in tap changer controls
- built-in printer and data storage
| Model | PATTR-03A |
|---|
- designed to provide voltages and currents to test single-phase distribution transformers
Phenix Technologies is a leading manufacturer of high-voltage, high-current, and high-power test systems and components. Our mission is to design and produce superior test systems to meet your specific needs. From portable test sets to over one million volt custom systems, Phenix Technologies utilizes our in-house engineering resources, manufacturing capabilities and flexibility to provide advanced solutions for our customers around the world since 1975.
Electrowind is a supplier partner of Phenix Technologies. If you don't see the specific Phenix Technologies equipment you are looking for on our website, request your quote from Electrowind today.
- Packaging Description: Each
- Product Weight: 455.00 EA
- Product Size: 20.00 x 15.50 x 7.50
Shipping Details
This item is oversized. Oversized items are not eligible for free shipping.
This product is oversized and/or not available for shipping via courier. Please contact Electrowind for shipping rates or we will contact you if shipping rates aren’t available for this product and you place an order for this product on our website.
