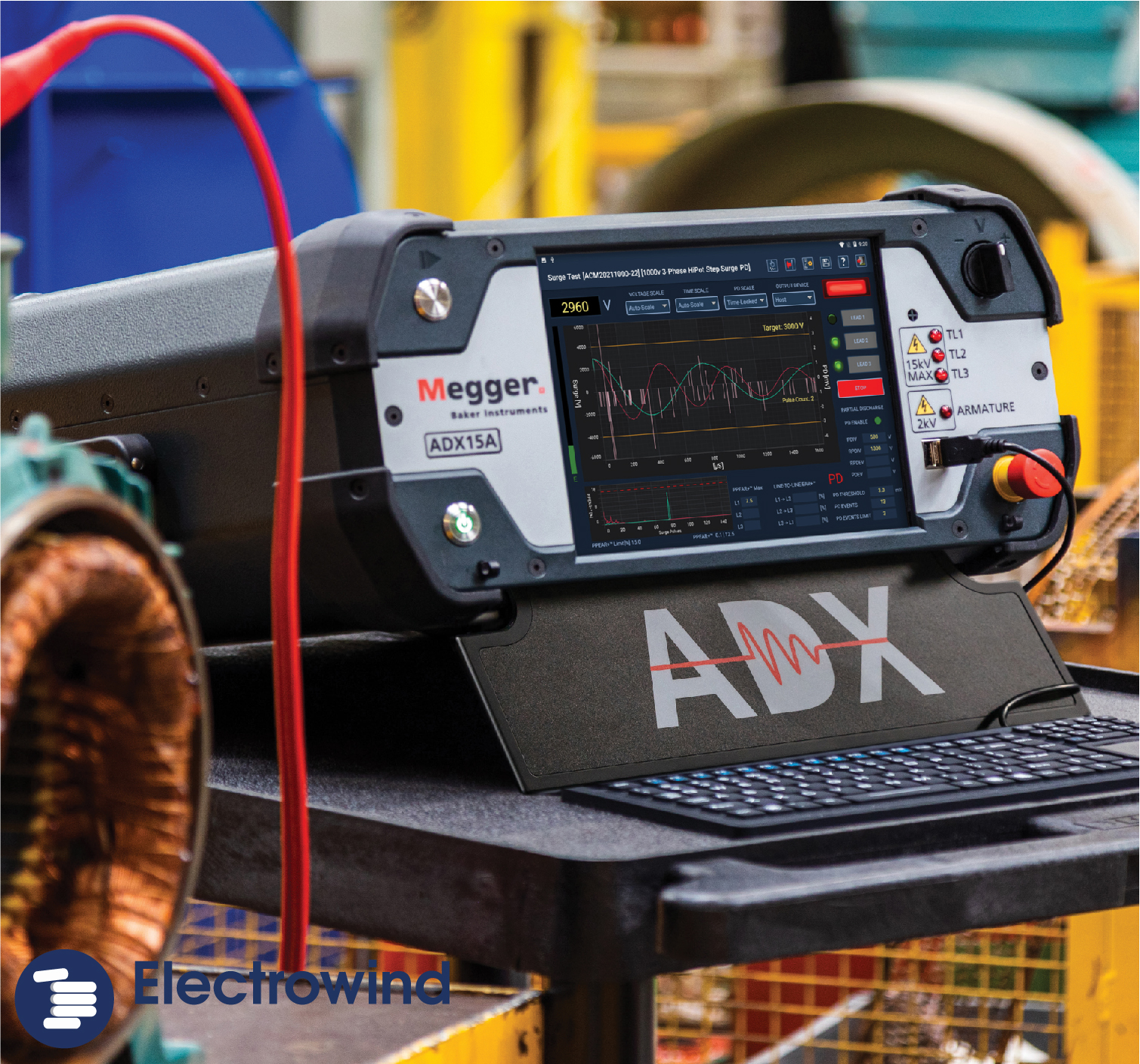

Megger Baker ADX Automated Static Motor Analyzer
Part: ADX
Manufacturer: Megger
The Megger Baker ADX is an innovative and transformational lead forward for motor testing in today's demanding workplaces. Developed using Linus on an Android operating system, the ADX software is easily updated via a LAN or Wi-Fi connection. The large 10.4" touchscreen is tough and daylight viewable for field testing.
A fundamental requirement of hard-working test equipment is having the optimal test lead set. The ADX has IEC61010 safety compliant, combined high voltage/low voltage detachable Kelvin test leads, rated at 16kV with a large jaw opening. The leads are available individually or in sets, so damaged leads can be replaced in the field without sending the equipment away-saving time and money.
An internal battery backup allows the ADX to be moved between assets without having to shut down and reboot for each new location.
The ADX family includes models designed to perform tests at voltages up to 15kV. The five main options include 4kv, 6kV, 12kV, 15kv and 15kV-A (Armature). Couple the ADX with a PPX to increase test voltages up to 40 kv for testing high voltage assets.
Available tests include: Winding Resistance, Inductance, Capacitance, Insulation Resistance (IR), Dielectric Absorption (DA), Polarization Index (PI), DC HiPot (standard), DC HiPot (step-voltage), DC HiPot (continuous ramped), Surge Analysis with EAR+, Partial Discharge on Surge.
- Asset-centric approach promotes turnkey testing for operators
- separating asset from installation provides greater insigh into asset service needs and issues
- PowerDB dashboard secure cloud-based analysis software
- choice of Manual, Automatic, or Sequence testing
- screen-level context sensitive help
- adaptable search capability
- asset managment tools
- configurable route-based testing
- Pulse-to-Pulse and Line-to-Line Error Area Ratio analysis
- import existing databases from AWA and DX
- Android operating system
- wireless networking capability for printing reports and updating software
- HDMI port for duplicating screens
- Wi-Fi and Bluetooth enable
| Model | ADX |
|---|
- electric motors and generators
- DC motor testing
- high voltage motor testing
- partial discharge testing
- low impedance testing
Megger and Megger Baker designs and manufactures electrical test equipment. Megger products help you install, improve efficiency, reduce cost and extend the life of your or your customers’ electrical assets.
Established in the late 1800s, the company has been designing and making test and measurement instruments that perform electrical measurements for preventative maintenance, troubleshooting and commissioning for decades. Megger products have supported customers all over the world to improve their facilities’ efficiency, reduce costs, extend the life of apparatus and through trending and analysis, anticipate equipment failure and future performance. It now has local offices in many locations with technical support teams and distributors all over the world. Manufacturing plants are located in Germany, Sweden, the UK, and USA.
Electrowind is a supplier partner of Megger Electrical Test Equipment. If you don't see the specific Megger product you are looking for on our website, request your quote from Electrowind today.
- Packaging Description: EACH
- Product Weight: 51.00 EA
- Product Size: 23.00 x 18.00 x 9.00
Shipping Details
This item is oversized. Oversized items are not eligible for free shipping.
This product is oversized and/or not available for shipping via courier. Please contact Electrowind for shipping rates or we will contact you if shipping rates aren’t available for this product and you place an order for this product on our website.
