Magnet/Winding Wire
FORMVAR
Roll over image to zoom in
Images are representative of product listed and may not be actual product.

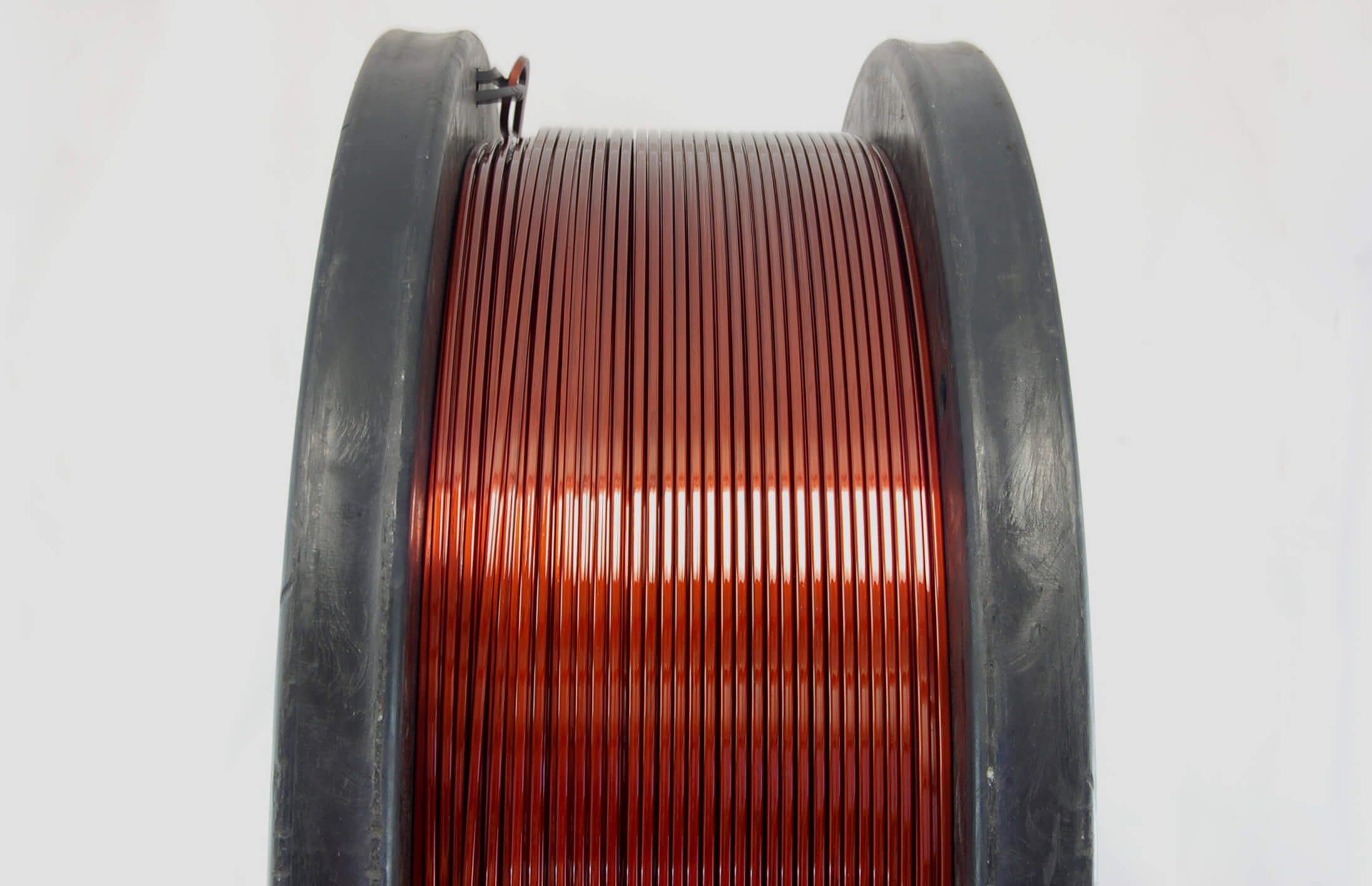

.100" x .175" Heavy FORMVAR Rectangular MW 18 Copper Magnet Wire 105°C, copper, 250 LB 24" reel (average wght.)
Part: R100.175HFORM24
Manufacturer: Essex Furukawa
Manufacturer #: C220XX10017524A
FORMVAR is a flexible magnet wire / winding wire for use in motors and oil filled transformers. FORMVAR MW 15 (MW 18 for rectangular sizes) wire is coated with a synthetic enamel composed of polyvinyl acetal and phenolic resins.
FORMVAR's hot oil resistan
- NEMA MW 18
- outstanding hot oil resistance
- excellent flexibility, adhesion and abrasion scrape resistance
- very good electrical properties
- recommended for use in oil-filled transformers
AWG Size | .100" x .175" |
---|---|
Product Type | FORMVAR |
Colour | Copper |
Temperature Class | Class A-105°C |
Insulation | Polyvinyl Acetal-Phenolic |
Conductor | Copper |
Shape | Rectangular |
Standard Type | Heavy Build |
NEMA Spec | MW 18 |
Windability | Very good |
Chemical Resistance | Excellent |
- ideal for oil-filled transformers
- motors
- random wound coils
- solenoids
Electrowind is a proud supplier of a broad range of magnet wire and cable products from Essex Furukawa.
Essex Furukawa is the global Leader in Magnet Wire/Winding Wire Manufacturing for Electric Vehicles, Automotive, & Industrial Applications, for major OEM & Tier 1 suppliers. If you don't see the specific Essex Furukawa product you are looking for on our website, we will find it for you. Reach out to Electrowind as your preferred supplier for Essex Furukawa magnet wire, winding wire and cable.
- Packaging Description: 24" Reel (250 LB average weight)
- Product Weight: 260.00 LB
- Product Size: 24.00 x 9.00 x 24.00
Shipping Details
This item is oversized. Oversized items are not eligible for free shipping.
This product is oversized and/or not available for shipping via courier. Please contact Electrowind for shipping rates or we will contact you if shipping rates aren’t available for this product and you place an order for this product on our website.
