Magnet/Winding Wire
INVEMID 200
Roll over image to zoom in

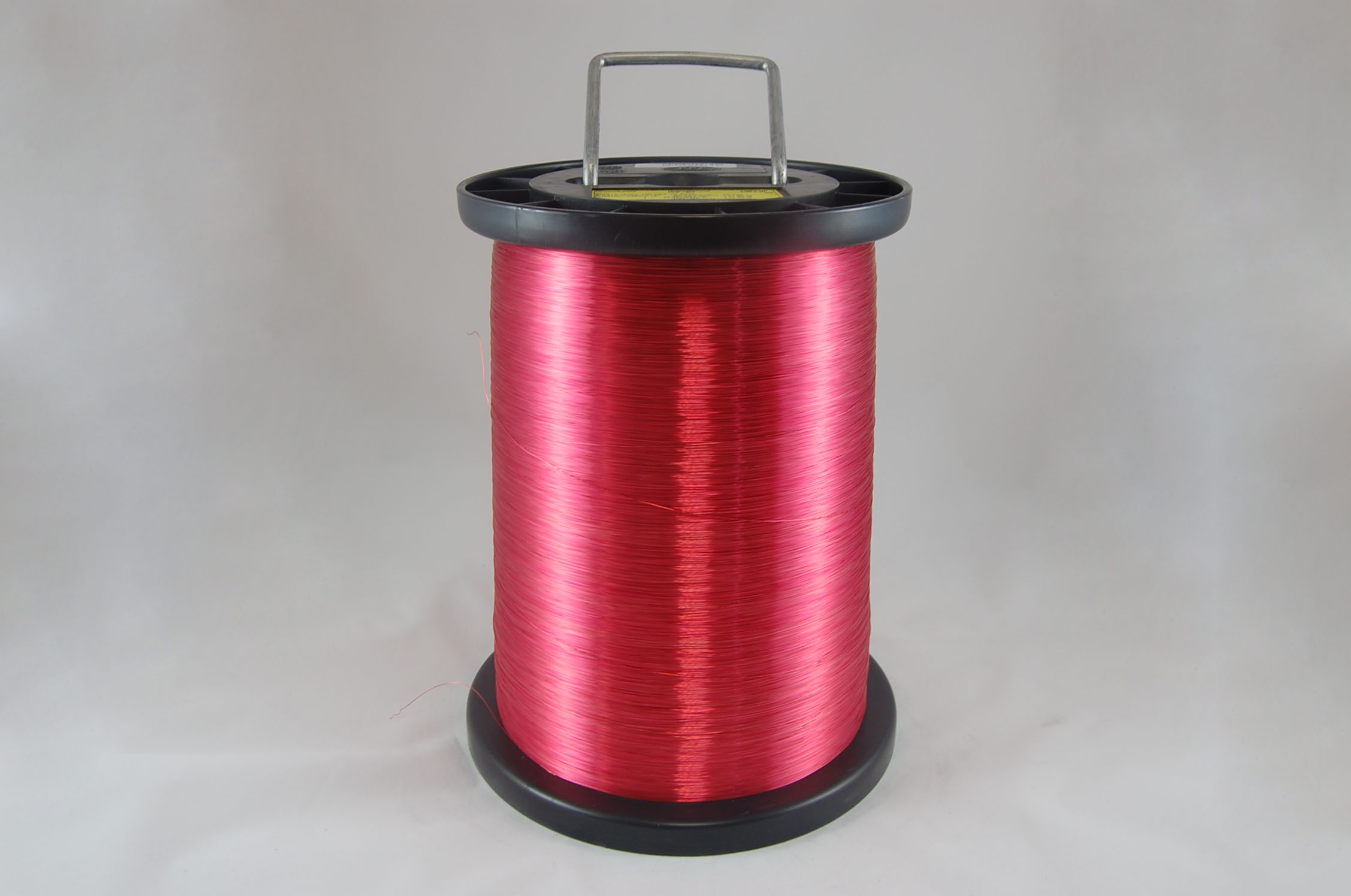

Images are representative of product listed and may not be actual product.
#16 Heavy INVEMID 200 Round MW 35 Copper Magnet Wire 200°C, copper, 45 LB half pack pail (average wght.)
Part: W16.0HINVEMID200HP
Manufacturer: PPE
Manufacturer #: P-C252XX00160008
INVEMID 200 magnet wire has a dual film construction with a base coat of polyesterimide and a top coat of polyamideimide. Thermoplastic flow values are in excess of 300°C and there is an excellent balance of all other properties, as well as compatibility with most solvents and varnish systems including Freon. Excellent transformer oil resistance. UL recognized.
Typical applications include:
-alternators, ignition coils
-electric tools
-motors for household appliances
-motors for vehicle wind wipers
-hermetic motors
-motors and high tension transformers
-ballasts for fluorescent lamps
- NEMA MW 35
- resistant to high temperatures
- optimal mechanical resistance
- resistant to cooling fluids and chlorinated oils
- excellent transformer oil resistance
| AWG Size | 16.00 |
|---|---|
| Product Type | INVEMID 200 |
| Colour | Copper |
| Temperature Class | Class H-200°C |
| Insulation | Polyester/Polyamideimide |
| Conductor | Copper |
| Shape | Round |
| Standard Type | Heavy Build |
| NEMA Spec | MW 35 |
| Windability | Excellent |
| Chemical Resistance | Excellent |
- alternators, ignition coils
- electric tools
- motors for home appliances
- motors for vehicle windshield wipers
- hermetic motors
- motors and high tension transformers
- ballasts for fluorescent lamps
PPE produces magnet wires with the highest quality copper and aluminium conductors, as well as the most advanced insulation materials, including enamels, tapes and fibers. The newest generation machines insure accurate process control so as to provide a superior quality product.
PPE has a wide range of products, from 34 AWG to 4/0 - 0.150mm to 11.7mm in round wires, as well as a large range of shaped conductors.
Electrowind is a supplier partner of PPE magnet wire. If you don't see the specific PPE magnet wire product you are looking for on our website, request your quote from Electrowind today.
- Packaging Description: P-260 Half-Pack Pail with taper flange reel (45 LB average weight)
- Product Weight: 50.00 EA
- Product Size: 11.00 x 11.00 x 13.00
