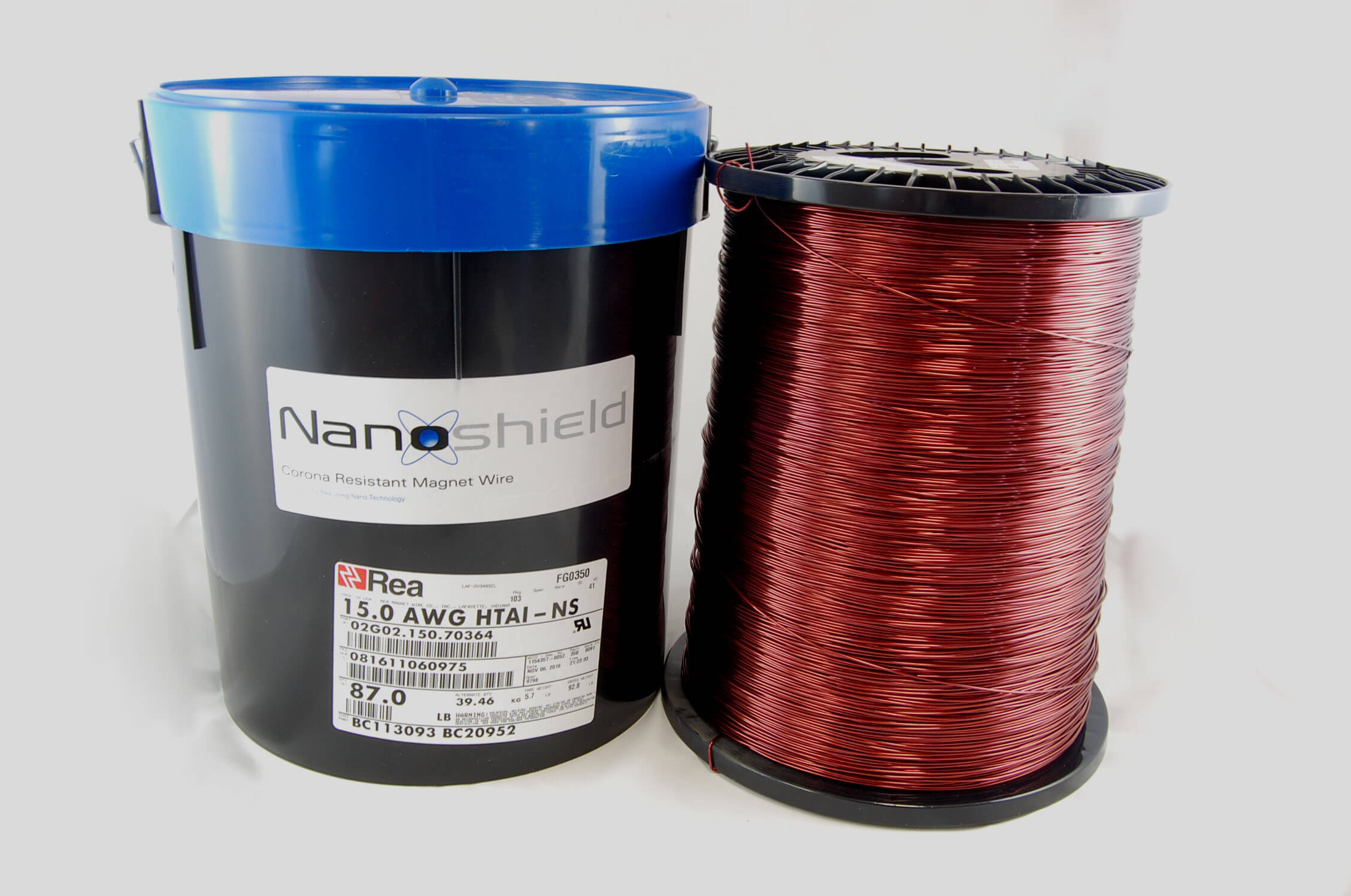

#19 Heavy Nanoshield SD HTAIH-NS (Inverter Duty) Round MW 35 Copper Magnet Wire 200°C, copper, 85 LB pail (average wght.)
Part: W19.0NANOTP
Manufacturer: Rea
Manufacturer #: 02G02.190.70368
Rea Nanoshield SD magnet wire is inverter duty wire that offers substantial insulation protection against transient spikes, high frequencies, elevated voltage levels, and short rise time pulses without increasing insulation thickness.
Nanoshield SD offers exceptional resistance to voltage stresses generated by high frequency, rapid rise time, voltage spikes typically introduced by IGBT-type inverters. Motor life is increased significantly over standard MW-35C magnet wire under these voltage stresses and across a wide temperature range.
Nanoshield SD is an evolution of Rea Pulse Shield SD magnet wire. It is used in a variety of applications including inverter-driven motors, high-frequency transformers and high voltage motors.
- exceptional resistance to voltage stresses generated by high
- substantial insulation protection against transient spikes, high
- enhanced resistance to thermoplastic flow (cutthrough), surface
- enhanced Dielectric strength
- exceptional flexibility without embrittlement, due to the significant
- excellent resistance to heat and solvent shock conditions
- ROHS & REACH Certified
- 100% in-line tested for HVC and bead prevention
| AWG Size | 19.00 |
|---|---|
| Product Type | Nanoshield SD |
| Colour | Copper |
| Temperature Class | Class H-200°C |
| Insulation | Polyester + NS-coat + Polyamide Imide |
| Conductor | Copper |
| Shape | Round |
| Standard Type | Heavy Build |
| NEMA Spec | MW 35 |
| Windability | Excellent |
| Chemical Resistance | Excellent |
- inverter-driven motors
- generators
- high-frequency transformers
- high voltage motors
- power tools
- DC motors
- automotive alternators and generators
- hermetic motors
Electrowind is a proud supplier of a broad range of magnet wire and cable products from Rea.
The Rea Magnet Wire Company is a leader in supplying magnet wire for manufacturers around the world. It is one of the world's largest manufacturers of magnet and nonferrous wire products that are used in the manufacture of motors, transformers and coils. Rea has earned a reputation for leadership in quality, innovation, service and collaboration. Since 1933, Rea's commitment has been to help customers succeed. Rea has a singular focus on providing the right solutions to meet your needs.
From air conditioners to cars, transformers to wind turbines, magnet wire is an essential component to virtually any electric motor. The Rea magnet wire line covers a broad range of applications. Rea wire plays a significant role in powering our world.
If you don't see the specific Rea product you are looking for on our website, we will find it for you. Reach out to Electrowind as your preferred supplier for Rea magnet wire, winding wire and cable.
- Packaging Description: TF® 80 Pail with taper flange reel (85 LB average weight)
- Product Weight: 90.00 EA
- Product Size: 13.00 x 13.00 x 13.00
$687.45/EA USD
Availability: 35
Order Minimum Qty: 1
Lead time when 0 in stock: 23 days
