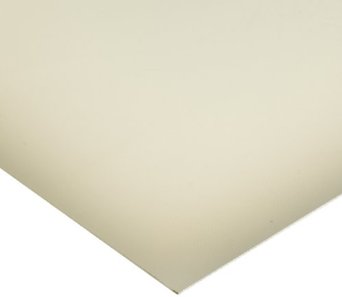

.032" (1/32" thick) G-7 Glass-Cloth Reinforced Silicone Laminate Sheet 220°C, cream, 36"W x 48"L sheet
Part: G7.031
Manufacturer: Electrowind Converting Solutions
NEMA grades G7 Glass-Cloth Reinforced Silicone - natural color is typically cream to white.
Composed of a continuous glass woven cloth base impregnated with a silicone resin binder, this grade has excellent heat and arc resistance.
Silicone thermosetting resins are among the best of all polymer materials in resistance to temperature. Hence, silicone is broadly used for high temperature electronic applications requiring low electrical losses. Silicone isn't as strong as epoxies and phenolics upon aging at lower temperatures but is stronger upon aging over 400°F.
G7 has extremely good dielectric loss properties under dry conditions and good electrical properties under humid conditions.
Electrowind Converting Solutions can custom machine G7 sheet to your specification, along with other customized solutions. Request your quote for custom parts today!
- NEMA G-7
- excellent heat and arc resistance
- high temperature applications
- extremely good dielectric loss properties under dry conditions
- good electrical properties under humid conditions
| Size-Thickness | .032" or 1/32" |
|---|---|
| Colour | Cream |
| Temperature Class | Class R-220°C |
| Material | Glass Silicone |
| Bond Strength | >700 lbs |
| Compressive Strength-Flatwise | 45,000 Psi |
| NEMA Spec | G-7 |
| MIL-I-24768/17 | |
- high heat and arc resistant applications
- electronic applications
Electrowind Converting Solutions are experts in contract converting rigid and flexible materials for industries that include power manufacturing, electronics, transportation, aerospace, mining & infrastructure, construction, medical and many more.
Our vast capabilities include custom adhesive and non-adhesive material slitting, narrow-width slitting, laminating, complex die-cutting and stamping, precision waterjet and CNC machining, kitting, assembly and finishing services. Our capabilities are vast and available to all, regardless of your industry.
Electrowind Converting Solutions offers design and prototyping services, sourcing expertise, small and large production capabilities and low minimums on your production jobs.
Electrowind Converting Solutions is a division of Electrowind, your premier supplier of magnet wire and electrical insulating materials for motor, transformers, electrical and electronics manufacturing.
- Packaging Description: 36" x 48" sheet
- Product Weight: 6.00 SH
- Product Size: 48.00 x 36.00 x 0.03
$96.36/SH USD
Availability: 5
Order Minimum Qty: 1
Lead time when 0 in stock: N/A
